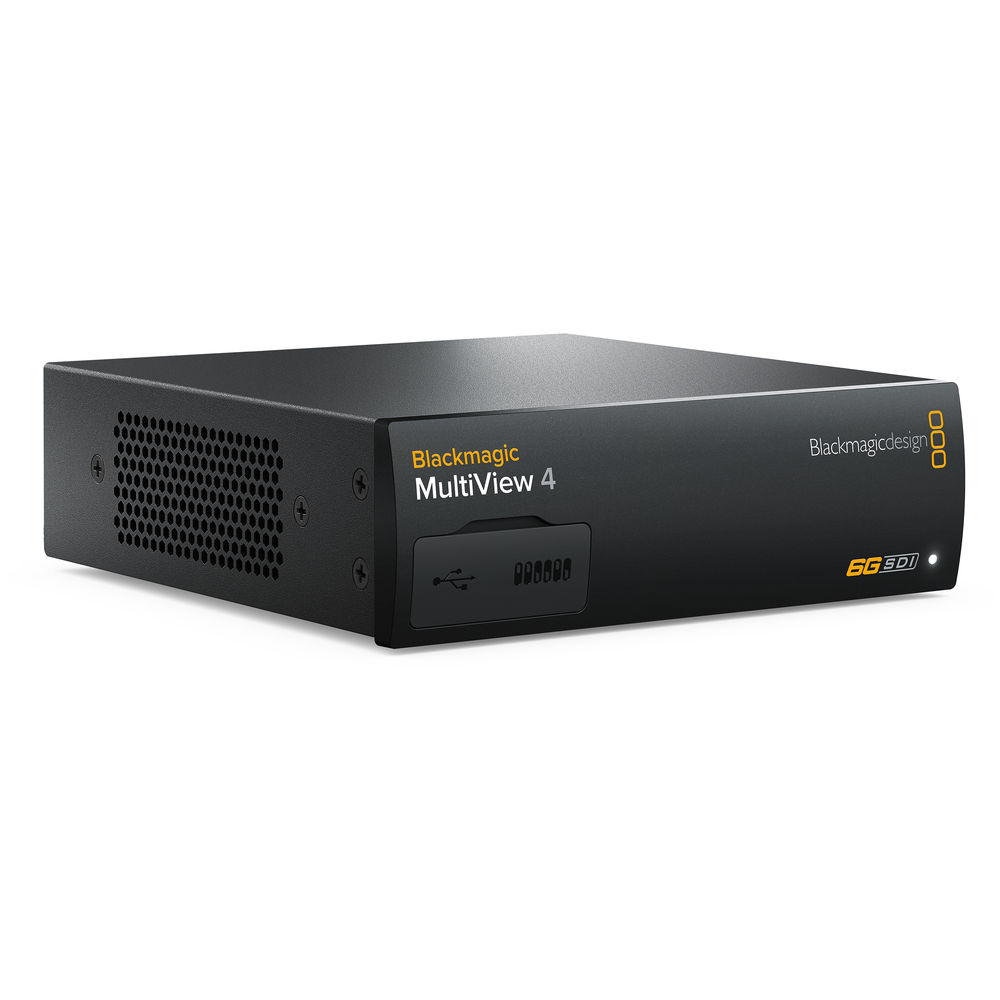

The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity. The MultiView 4 allows for 2×2 display with each input fully re-synchronized. One 6G-SDI output and one HDMI multi-view output are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.
Highlights:
4x 6G-SDI Inputs with Loop Outputs
1x SDI & 1x HDMI MultiView Outputs
Supports SD, HD, UHD 4K, DCI 4K
Independent Inputs Allow Mixing Formats
Standard 2×2 Configuration
Tech Specs:
4 x 10-bit SD/HD/6G-SDI
4 x 10-bit SD/HD/6G-SDI loop outputs
1 x 10-bit HD/6G-SDI
1 x HDMI, type A (supports EDID of the monitor)
Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video.
Ethernet for Remote Control
