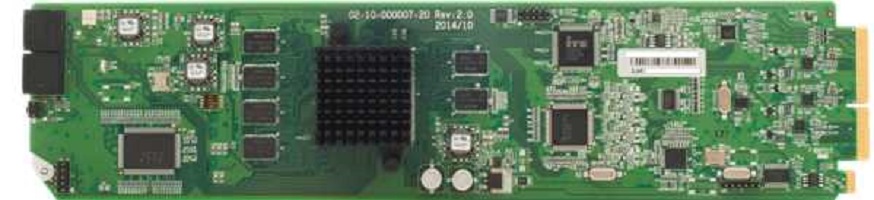

- SDI to HDMI/DVI Converter/Scaler with Loudness Monitoring for openGear Platform
- openGear 3.0 card-based form factor
- Dashboard control enabled
- 3G/HD/SD to HDMI converter/scaler w/loudness monitoring
- ATSC A/85 and EBU R128 loudness measurement modes
- Loudness and dial norm monitoring over time
- Built-in scaler/de-interlacer
- SDI output that matches HDMI output
- Analog audio monitoring output
- Embedded audio on HDMI output
- Selectable On-Screen Display (OSD) elements
- 16 channels of embedded audio
- AFD/WSS
- Safe area
- Dynamic UMD (TSL)
- CC 608 /708
- Remote control for preset recall
- Automatic input aspect ratio detection
- Built-in alarm detections – no audio, audio high/low, no video video black, video frozen GPI contacts, can be configured
- 5 year limited warranty
TOTAL WINDOWS
1
INPUTS
3G/HD/SD-SDI/Composite
SERIAL DIGITAL
SMPTE 424M 292M, 259M
Equalization: 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
Return Loss: > 15db up to 1.485 Gbps, > 10db up to 3G
Embedded Audio: SMPTE-272M-A
COMPOSITE
NTSC (SMPTE-170M), PAL (ITU624-2)
Signal Level: 1V nominal
DC Offset: 0V, + – 0.1V
Impedance: 75 ohm
Return Loss: 40db up to 5MHz
OUTPUTS
1 x HDMI/DVI
1 x SDI
HDMI (OG-Pinnacle-RM)
800×480 to 1920×1200 (1080p) 50/59.94/60Hz
RJ45 (OG-Pinnacle-RMx)
Up to 35 feet with passive receiver Up to 115 feet with active receiver (option)
SDI
Matching the HDMI output resolution up to 3G
ON-SCREEN DISPLAY
Borders, Labels, Tallies, Audio meters, Alarm tags, Safe area markers
GPI
8 for tally or AXP (ASCII command)
IP
100 Base-T, TSL, AXP_Lite protocol
POWER
15W
