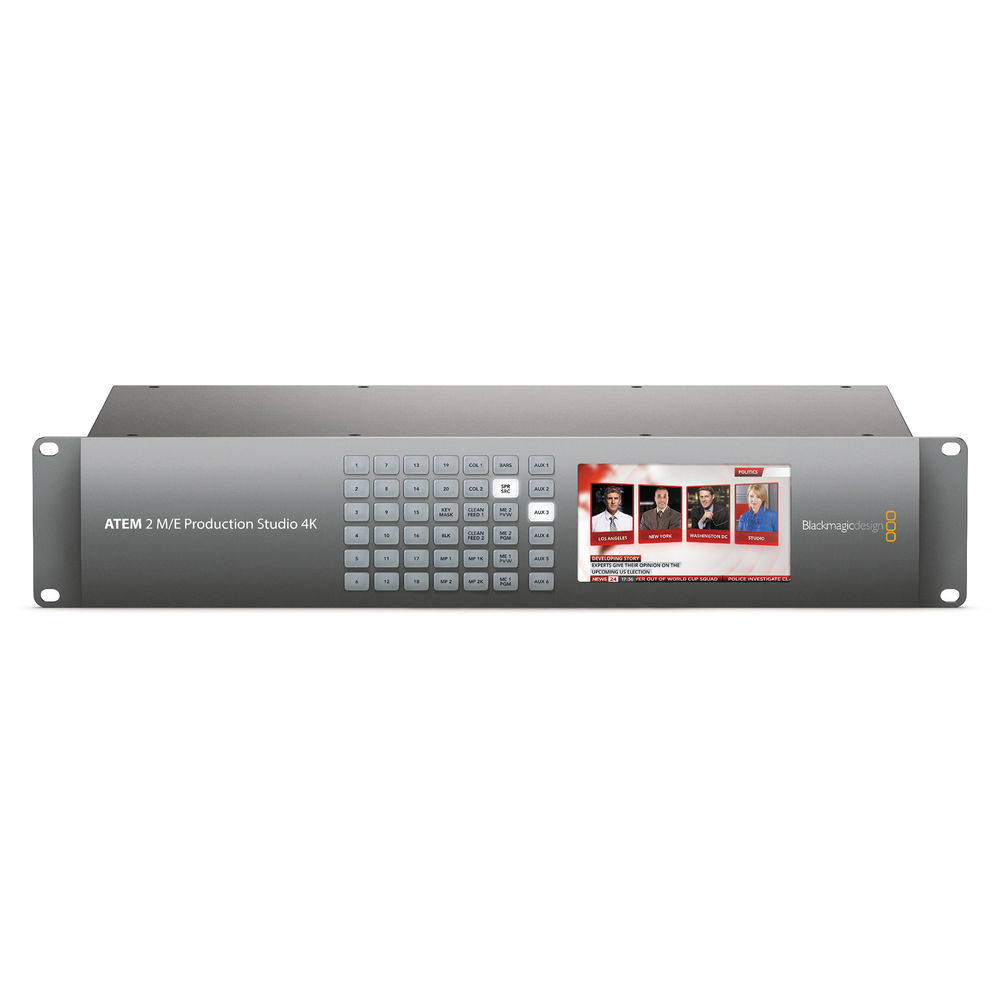

The ATEM 2 M/E Production Studio 4K from Blackmagic Design is a live event multi camera production switcher with 20 video inputs built into a 2RU chassis. Supporting NTSC/PAL/HD and Ultra HD 4K (3840×2160) video formats, the switcher connects to a wide range of cameras and sources, delivering a single program stream in SD, HD, or Ultra HD video. All this is done live and in real time with no rendering required. The switcher features a reference video input for synchronizing the switcher to other equipment using tri-level or blackburst sync. Each input also features its own frame synchronizer, which allows you to use cameras that do not feature Genlock as well as input video from computer sources.
Highlights:
Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
Supports 4K Resolution Over SDI or HDMI
20 x 6G-SDI & 1 x HDMI Inputs
Tri-Sync/Blackburst Ref. Sync Input
10 x Built-In Frame Synchronizers
Tech Specs:
3840 x 2160p 23.98/24/25/29.97
720p 50/59.94
1080i 50/59.94
1080p 23.98/24/25/29.97/50/59.94
NTSC: 525/29.97 – 4:3/16:9
PAL: 625/25 – 4:3/16:9
Input resolutions for computer:
720 x 480i 59.94 Hz
720 x 576i 50 Hz
1280 x 720 50/59.94 Hz
1920 x 1080 50/59.94 Hz
3840 x 2160 23.98/24/25/29.97 Hz
Note: Also supported are: 24, 30, and 60 Hz inputs when switcher is in 23.98, 29.97, and 59.94 Hz formats respectively.
Two Independent Multi-View Outputs
